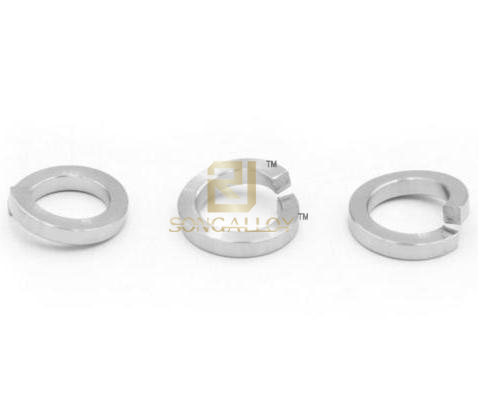

DIN127 Titanium Spring Lock Washers seperti China Gb93.1 washer dan UNI 1751 Titanium Spring Lock Washers
Karakter washer pegas titanium terkunci DIN127
Mesin cuci titanium Din127 banyak digunakan dalam struktur bantalan beban dan non-beban dari produk mekanis umum. Mereka dicirikan oleh biaya rendah dan pemasangan yang mudah, dan cocok untuk suku cadang dengan perakitan dan pembongkaran yang sering dan dipasang di bawah mur untuk mencegah mur melonggar, yang dapat meningkatkan gaya pra-pengencangan dan mencegah kendur.
Kami adalah pengencang Titanium Murni yang diaudit dan pemasok mur baut titanium dengan manajemen kewirausahaan yang matang, tim R&D profesional, teknologi manufaktur canggih, dan berharap untuk memasok barang yang tepat kepada klien kami dengan harga terbaik.
Dimensi dan gambar DIN127 Titanium Spring Lock Washers ditunjukkan seperti di bawah ini:
| SPESIFIKASI | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | |
| d1 | min | 3.1 | 3.6 | 4.1 | 51 | 6.1 | 7.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 |
| maksimal | 3.4 | 3.9 | 4.4 | 5.4 | 6.5 | 7.5 | 8.5 | 10.7 | 12.7 | 14.7 | 17 | 19 | 21.2 | 23.5 | 25.5 | 28.5 | |
| d2 | maksimal | 6.2 | 6.7 | 7.6 | 9.2 | 11.8 | 12.8 | 14.8 | 18..1 | 21.1 | 24.1 | 27.4 | 29.4 | 33.6 | 35.9 | 40 | 43 |
| b | DK | 1.3 | 1.3 | 1.5 | 1.8 | 2.5 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5 | 6 | 6 | 7 | 7 |
| maksimal | 1.4 | 1.4 | 1.6 | 1.9 | 2.65 | 2.65 | 3.15 | 3.7 | 4.2 | 4.7 | 5.2 | 5.2 | 6.2 | 6.2 | 7.25 | 7.25 | |
| min | 1.2 | 1.2 | 1.4 | 1.7 | 2.35 | 2.35 | 2.85 | 3.3 | 3.8 | 4.3 | 4.8 | 4.8 | 5.8 | 5.8 | 6.75 | 6.75 | |
| s | DK | 0.8 | 0.8 | 0.9 | 1.2 | 1.6 | 1.6 | 2 | 2.2 | 2.5 | 3 | 3.5 | 3.5 | 4 | 4 | 5 | 5 |
| maksimal | 0.9 | 0.9 | 1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.35 | 2.65 | 3.15 | 3.7 | 3.7 | 4.2 | 4.2 | 5.2 | 5.2 | |
| min | 0.7 | 0.7 | 0.8 | 1.1 | 1.5 | 1.5 | 1.9 | 2.05 | 2.35 | 2.85 | 3.3 | 3.3 | 3.8 | 3.8 | 4.8 | 4.8 | |
| h | min | 1.9 | 1.9 | 2.1 | 2.7 | 3.6 | 3.6 | 4.6 | 5 | 5.8 | 6.8 | 7.8 | 7.8 | 8.8 | 8.8 | 11 | 11 |
| maksimal | 2.1 | 2.2 | 2.5 | 3.2 | 4.2 | 4.2 | 5.4 | 5.9 | 6.8 | 8 | 9.2 | 9.2 | 10.4 | 10.4 | 13 | 13 | |
| k | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | |
| r | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 1 | 1.6 | 1.6 | |
Lebih banyak ukuran din127 titanium spring washer 30mm hingga 80mm
| SPESIFIKASI | 30 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | 68 | 72 | 80 | 90 | 100 | |
| d1 | min | 30.5 | 36.5 | 39.5 | 42.5 | 45.5 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 81 | 91 | 101 |
| maksimal | 31.7 | 37.7 | 40.7 | 43.7 | 46.7 | 50.5 | 54.5 | 58.5 | 62.5 | 66.5 | 70.5 | 74.5 | 82.5 | 92.5 | 102.5 | |
| d2 | maksimal | 48.2 | 58.2 | 61.2 | 68.2 | 71.2 | 75 | 83 | 87 | 91 | 95 | 99 | 103 | 111 | 121 | 131 |
| b | DK | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| maksimal | 8.25 | 10.25 | 10.25 | 12.25 | 12.25 | 12.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | |
| min | 7.75 | 9.75 | 9.75 | 11.75 | 11.75 | 11.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | |
| s | DK | 6 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| maksimal | 6.2 | 6.2 | 6.2 | 7.25 | 7.25 | 7.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | |
| min | 5.8 | 5.8 | 5.8 | 6.75 | 6.75 | 6.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | |
| h | min | 13.6 | 13.6 | 13.6 | 15.6 | 15.6 | 15.6 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| maksimal | 16.1 | 16.1 | 16.1 | 18.4 | 18.4 | 18.4 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | |
| k | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| r | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
Di mana membeli DIN127 Titanium Spring Lock Washers dari China? Silakan kirim email kepada kami info@topqualityalloy.com dengan ukuran dan kuantitas yang diperlukan dan grade titanium.
