DIN912 TAP Hexagon Socket Tapered Cap Titanium Sekrup seperti DIN912, hanya tipe kepala yang berbeda.
Titanium DIN912 TAP Hexagon Socket Tapered Cap Screws umumnya digunakan di berbagai peralatan mesin dan aksesorinya. Kami memproduksi GB, DIN, ASME / ANSI, ISO, UNI, JIS dan pengencang titanium dan titanium standar industri lainnya, serta titanium non-standar dan pengencang paduan titanium one stop service di sini.

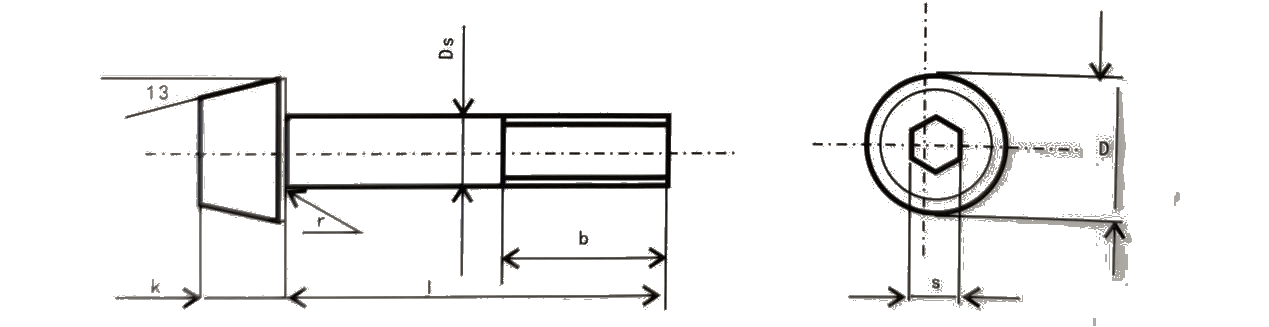

DIN912 TAP Hexagon Socket Tapered Cap Titanium Sekrup detail data teknis seperti di bawah ini:
| Sekrup titanium DIN912 Ketuk | SPESIFIKASI | ||||||
| DIN912 TAP Ukuran | I | D | s | Ds | b | k | r |
M5X10 | 10 | 8.5 | 4 | 5 | 5 | 0.3 | |
M5X15 | 15 | 8.5 | 4 | 5 | 5 | 0.3 | |
M5X20 | 20 | 8.5 | 4 | 5 | 5 | 0.3 | |
M5X25 | 25 | 8.5 | 4 | 5 | 5 | 0.3 | |
M5X30 | 30 | 8.5 | 4 | 5 | 22 | 5 | 0.3 |
M6X10 | 10 | 10 | 5 | 6 | 6 | 0.3 | |
M6X15 | 15 | 10 | 5 | 6 | 6 | 0.3 | |
M6X20 | 20 | 10 | 5 | 6 | 6 | 0.3 | |
M6X25 | 25 | 10 | 5 | 6 | 6 | 0.3 | |
M6X30 | 30 | 10 | 5 | 6 | 22 | 6 | 0.3 |
M6X35 | 35 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X40 | 40 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X45 | 45 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X50 | 50 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X55 | 55 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X60 | 60 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X65 | 65 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X70 | 70 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X75 | 75 | 10 | 5 | 6 | 25 | 6 | 0.3 |
M6X80 | 80 | 10 | 5 | 6 | 25 | 6 | 0.4 |
M8X15 | 15 | 13 | 6 | 8 | 8 | 0.4 | |
M8X20 | 20 | 13 | 6 | 8 | 8 | 0.4 | |
M8X25 | 25 | 13 | 6 | 8 | 8 | 0.4 | |
M8X30 | 30 | 13 | 6 | 8 | 25 | 8 | 0.4 |
M8X35 | 35 | 13 | 6 | 8 | 25 | 8 | 0.4 |
M8X40 | 40 | 13 | 6 | 8 | 25 | 8 | 0.4 |
M8X45 | 45 | 13 | 6 | 8 | 25 | 8 | 0.4 |
M8X50 | 50 | 13 | 6 | 8 | 25 | 8 | 0.4 |
M8X55 | 55 | 13 | 6 | 8 | 25 | 8 | 0.4 |
Lebih banyak sekrup titanium DIN912 TAP atau ukuran baut titanium DIN912
M8X60 | 60 | 13 | 6 | 8 | 25 | 8 | 0.4 |
M10X20 (P1.25) | 20 | 16 | 8 | 10 | 10 | 10 | 0.4 |
M10X25 (P1.25) | 25 | 16 | 8 | 10 | 10 | 10 | 0.4 |
M10X30 (P1.25) | 30 | 16 | 8 | 10 | 26 | 10 | 0.4 |
M10X35 (P1.25) | 35 | 16 | 8 | 10 | 30 | 10 | 0.4 |
M10X40 (P1.25) | 40 | 16 | 8 | 10 | 30 | 10 | 0.4 |
M10X45 (P1.25) | 45 | 16 | 8 | 10 | 30 | 10 | 0.4 |
M10X50 (P1.25) | 50 | 16 | 8 | 10 | 30 | 10 | 0.4 |
M10X30 (P1.5) | 30 | 16 | 8 | 10 | 30 | 10 | 0.4 |
M10X34 (P1.5) | 35 | 16 | 8 | 10 | 30 | 10 | 0.4 |
M10X40 (P1.5) | 40 | 16 | 8 | 10 | 30 | 10 | 0.4 |
selamat datang hubungi kami untuk titanium sekrup DIN912 dan DIN912 TAP Hexagon Socket Tapered Cap Titanium Sekrup hanya email kami info@topqualityalloy.com dengan ukuran, bahan dan kuantitas yang diperlukan untuk pertanyaan dan pesanan.
